PURETCH™ Photoresist Film
This is the thinnest dry film photoresist available and thus the best for photo etching high resolution halftones and line work in copper and other metals. Etch silver with ferric nitrate. Exposes with a positive. The larger rolls are 24.75" wide. Pronounced purETCH, not purTECH !
Puretch Film Specs here. Processing Instructions included with film.
Puretch is also available in the US at Takach Press, in Europe at Polymetaal and in Japan at Studio Kitayama
6" x 3' Sample $12.00 + Priority S&H in US, International orders are sent via First Class mail
10'x 2' Roll $49.00 + Priority S&H domestic and international
50'x 2' $210.00 + Priority S&H domestic and international ORDER ONLINE
NEW SKYLIGHT Photopolymer Intaglio Film
A thicker film for non-etch intaglio applications. Apply to acrylic, PETG or metal sheet. Expose, develop and print. Excellent D-max and also works well for CTP Intaglio (computer to plate). Print directly onto film with any front-feed Epson.
2x10' Roll $49.00 + Priority S&H domestic and international
2x50' $210.00 + Priority S&H domestic and international ORDER ONLINE
DRAGON GRAVURE Photogravure - Rotogravure Pigment Paper
Dragon tissue is significantly more sensitive and slightly less contrast than Phoenix. Detailed processing directions included with tissue.
19.5 inch x 8 feet $65.00 + S&H
19.5 inch x 65 feet (.5 x 20 meters) roll $315 + S&H
39 inch x 65 feet (1 x 20 meters) roll $530+ S&H
PHOENIX GRAVURE Photogravure - Rotogravure Pigment Paper (aka carbon tissue)
This tissue has slightly more contrast and is less sensitive than Dragon.
Detailed processing directions included with tissue.
2 x 8 feet $71.00 + Priority S&H
2 x 65 feet $375.00 + Priority S&H
4 x 65 feet $680.00 +Priority S&H
Ferric Chloride 48º Baumé 4 Gallons
This is a very high purity ferric chloride that is suitable to use as a replacement of the discontinued Fuji-Hunt Rotogravure Iron. The quality has been tested by us for photogravure etching and it is excellent! Packaged in a case of 4 bottles, 1 gallon each.
$220 includes ground shipping and HazMat fees in the 48 states ORDER ONLINE

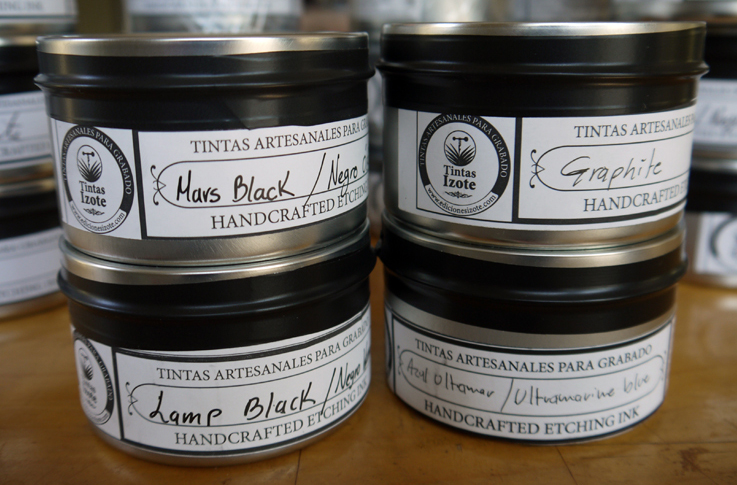

IZOTE Etching Inks (ee ZOH tay)
New ink flavor! Lamp Black. Super smooth and highly pigmented, cool black.
Flavors: Graphite, Vine Black, Ultramarine Blue, Bone Black, French Black, Mars Black, Umber Black, Transparent Base. Izote handcrafted inks are unrivaled in their tonal range, pigment load and fineness. They are specifically made for the delicately etched tones of photogravure and aquatint but work well for all etching and intaglio printing processes.
300 gram can (approx 200 ml) Priced from $19 - $29. ORDER ONLINE
2x2" Squeegee Ink Card
Polyurethane squeegee blade, sold by the inch. The squeegee blades make great inking cards for etching and are gentle on the metal while holding its edge for a very long time. The material is solvent resistant. The squeegee cards conveniently stand up on the inking slab. Card ink with the factory molded edges.
$5.00 per card plus S&H ORDER ONLINE
Analogue Aquatint Screen THE ONLY ANALOG SCREEN ON THE MARKET!
22 years ago I made my first analog aquatint screen. I am making screens again using the same technique as before but with much more refined grain quality and better resolution. Achieve a similar look to a traditional aquatint without the equipment, space or skills needed for applying a consistent dustgrain. This screen is meticulously made by hand with an exacting process and developed in a darkroom. There is nothing digital about this screen. The screen resembles very fine asphaltum dust in resolution and the grain blends smoothly when exposed at the optimum time. I have settled on a density that will work well for gravure and photopolymer which is about 80%. Custom densities are available and will cost 50% extra, please e-mail. The feedback on these screens has been quite positive. Users report good tonal range with a continuous natural grain that is finer than rosin. All screens are custom made so shipping can be up to 2 weeks. Sizes range from 10x11 up to11 x 14" ORDER ONLINE
Grayscale Dye-Based Inkset for High Resolution Continuous Tone Digital Positives / Negatives plus High Contrast / High Density output for Screen Printing, Puretch and Letterpress
New & Improved Dye Formula! DYE Inks are the absolute best for transparencies. Our new formula has a lightfast rating of 7 out of 8 so this new ink will work better when printing multiple contact prints from negatives! Cape Fear Press designed the original dye inkset in 2012 specifically for photogravure positives but the new inkset will work incredibly well for for continuous tone digital negatives for alternative photographic contact printing processes such as carbon, cyanotype, gum, albumen, silver gelatin, platinum-palladium, Woodburytype, etc. It is also designed for Black Ink Only printing for screenprint halftones, letterpress negatives, Puretch halftones and more.
Profiles are Included and can be further calibrated to your process. The continuous tone profile is capable of printing in excess of 3.4 in UV density and the Black Ink Only profile can print even darker. Pigment inks rarely offer the Dmax required for several alternative processes.
Grayscale inks will naturally produce the smoothest and most artifact-free transparencies. Dye-based inks will ensure the highest resolution and blending for continuous tone transparencies. Dye will always print consistently in density and smoothly in the transitions because the tonal mixture is always in suspension and not settling in the cartridges like non-Epson pigment inks can. Dyes will also penetrate the transparency coating and are more scratch resistant than pigment.
This inkset and profiles are designed specifically for the Epson 1400-1430 and the Epson 1500W EU Model. The inks can also be used in other Epson printers but a custom QTR ink profiles will be required which we can do for a fee. We can assume no rensponsibility for your using non Epson inks in your printer. No problems have been reported by users. Individual tone, 4 fl. oz. bottle $25.00 each ORDER ONLINE
Set of 6 inks: $145.00 + S&H - Detailed set up instructions included with K6 inkset.
Includes QTR profiles for ontinuous tone grayscale printing and a Black Ink Only profile forhigh density text, halftones and graphics.

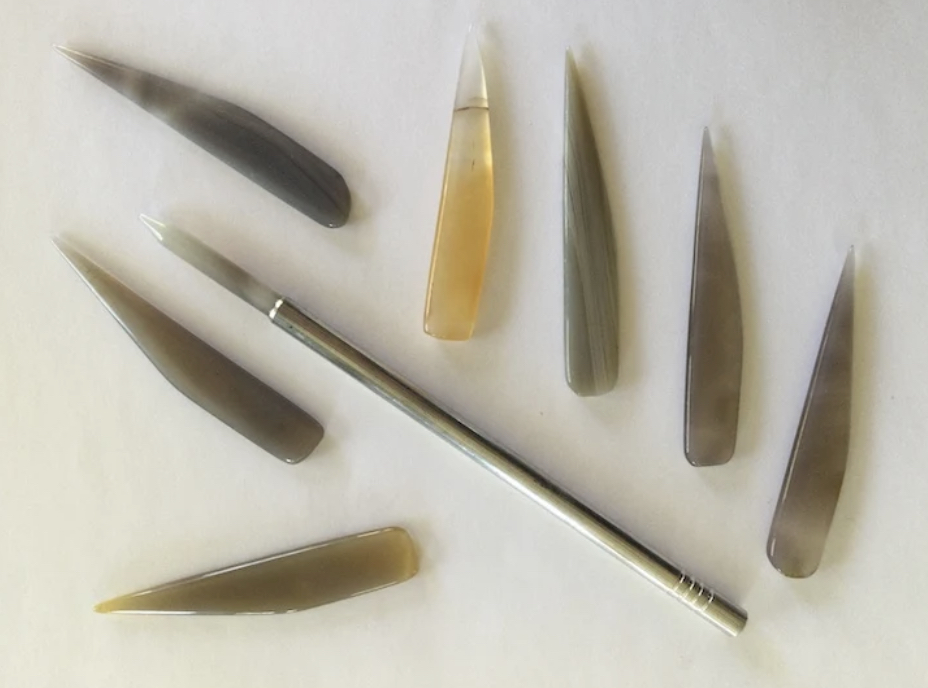

Agate Burnishers make great burnishers for etching and copper gravure. The smooth stone does not mar the metal like a steel burnisher and brings the metal to print with a bright white. Two shapes available: #14 fine tip straight cone, perfect for removing scratches and adding fine highlights. #3 Solid agate with pointed tip and blunt end ideal for burnishing highlights and or polishing bevels. The stone can be polished on the inside of a piece of leather (aka leather strop) with rubbing compound if it ever becomes scratched. $49.00 and $15.00 plus S&H ORDER ONLINE
A 100 GSM heavyweight surface gampi printmaking paper with a sulphite backing. This paper works well for intaglio, photogravure, and the Japanese woodblock printmaking method, mokuhanga. It picks up every subtle tone from aquatints and gravure plates. Mist paper evenly with spray bottle and blot before printing etchings. Sold in a 38" wide roll in 2, 5 and 10 meters. ORDER ONLINE

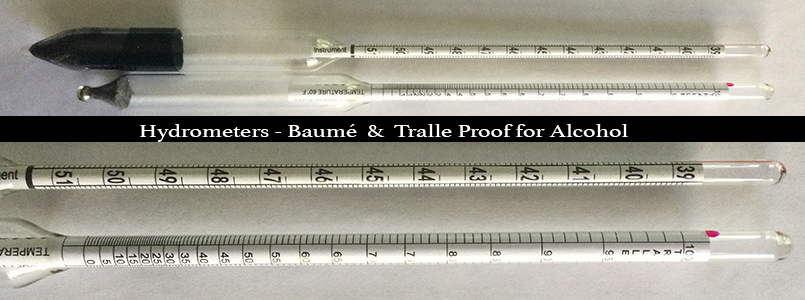

Baume & Alcohol Hydrometers
39 - 51º Baume' Hydrometer. Temperature of Standardization 60°F. Sterilized glass.
Tralles-Proof Hydrometer for maintaining Alcohol solutions. Temperature of Standardization 60°F. Sterilized glass
Subtract approx 5% when measuring alcohol at 70ºf.
$38 each plus S&H. ORDER ONLINE
Super Thin Woven 100% Wool Sizing Catcher Felts "Baby Blanket" approx 1 mm thick for smooth photogravure and aquatint prints. We recommend one of these with a slightly thicker 1/8 or 1/12 woven as a pusher. Sold by the linear foot at 56" wide.
$52 per foot plus shipping. ORDER ONLINE

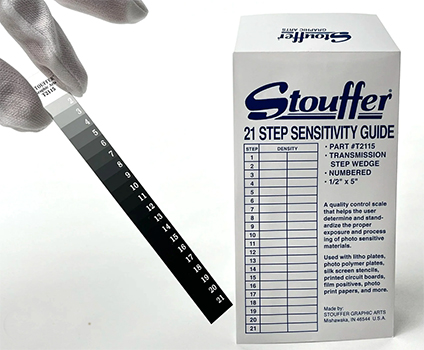

Stouffer 21 step guide
Establish perfect Puretch exposure times easily with the Stouffer step guide. There are many different ways for exposing plates. There are an abundance of different exposure systems and processing techniques. The one constant is the step tablet. Use the step tablet as a benchmark for all exposures to achieve accuracy and repeatability. Click on guide image for instructions and density specifications.
$14.00 ORDER ONLINE

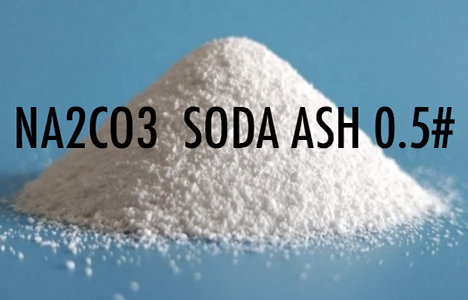

Sodium Carbonate, AKA Soda Ash 1/2 Lb.
Mix 10 Grams soda ash with 1 liter of water to make Puretch Developer.
$5.00 + S&H US Orders Only ORDER ONLINE

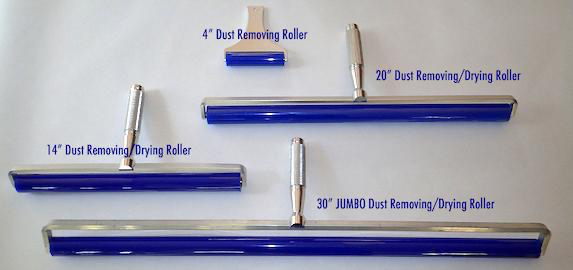

Dust Removing and Plate Drying Rollers 4" $49, 10" $69, 14" $95, 20" $140 plus S&H
The multi-purpose rollers work great for removing liquids from recently developed photogravure and photopolymer plates. Also works well for adhering gelatin to the plate. Removes dust from glass and awuatint screens. ORDER ONLINE
PICCO Aquatint Resin 1 or 5 Lb.
The perfect and best resin for dust grain box aquatints and heliogravure. PICCO resembles Grade A pine rosin in color and very fine asphaltum in resolution. PICCO is ideal for use with photogravure pigment paper because (unlike pine rosin) it is resistant to alcohol. Click here for use and melting tips. Always wear a tight fitting dustmask when dusting a plate with resin. Please refer to the MSDS for fire and safety warnings.
$15.00 and $49.00 S&H ORDER ONLINE
MAAS Polish is the best polish we have tried yet and outperforms Wenol, giving even more shine. Wenol gives more shine than Putz pomade which is better than commonly used Brasso. Brasso performs terribly compared to the other polishes and does little more than remove tarnish. MAAS comes in a 4oz tube.
$14.00 plus S&H ORDER ONLINE
NEW UV Densitometry Services on our X-Rite 361T Densitometer
Mail us your printed wedge on film and we will e-mail you the readings. Calibrated digital 21 and 51 step wedges are located here. Check our online store link below for more info.
11 steps for $19, 21 steps for $35, 51 steps for $50.00 ORDER ONLINE
Tech Support and Consulting
One free photogravure tech support request is included with each roll of gravure paper. To submit a troubleshooting request please use this link. These photogravure troubleshooting consults nomally will solve the issue but additional consulting is available for $25.00 per 15 minutes for in depth coaching or troubleshooting. Consultation for QuadtoneRIP or photo etching with Puretch is also available at the same rate. ORDER ONLINE
US Money orders and checks accepted via mail if you prefer, personal checks will have to clear prior to shipping. Orders will ship US Priority mail with delivery confirmation after receiving payment. Please E-mail Cape Fear Press with your order so a confirmation with a total of shipping, handling and payment mailing address can be E-mailed back to you. Please title E-mails "Puretch Order".
PURCHASE ORDERS We accept purchase orders for US and Canadian Universities. Go to the Order Page (links above) for prices with shipping in your country. Please e-mail us with the Purchase Order. Please include a telephone number in the e-mail. Orders must be paid for within 30 days of shipping or late fees will apply
SALES TERMS & RETURN POLICY ON DAMAGED SHIPMENTS
• Orders may be returned un-opened for a store credit of the actual item amount listed above less shipping within 5 days of receiving. Recipient must also pay return shipping. This return/credit policy only applies to regularly in-stock retail items, not special orders listed above, tech support or contract work.
• All international customers are responsible for any CUSTOMS FEES that may occur. Contact your local customs agency for more info.
• Please inspect your product immediately upon receiving and contact us right away if your product was damaged in shipping. Damaged goods will need to be reported within 5 days to be processed for return and replacement.
• All US and International orders are shipped USPS Priority mail within 2 business days. This includes insurance and tracking. International Priority is normally 7-10 business days but we can not guarantee delivery times. If you need URGENT SHIPPING, please call 910-458-4647 between 10am and 6pm Monday - Fridays, Eastern Standard Time, to arrange a USPS Express service or another carrier.
CAPE FEAR PRESS THANKS YOU FOR YOUR ORDERS! You help support the arts when you buy from an artist run business.
